How to Install MacOS Sierra 10.12.6 on Windows PC/Laptop

How to Install MacOS Sierra 10.12.6 on Windows PC/Laptop

by Ravi Singh
2 comments 24 views
MacOS 10.12.6 Installation guide for Windows PC and Laptops

In this HowTo Guide, I will show you how you can Install MacOS Sierra 10.12.6 on Any Laptop or PC running on the 7th Kaby Lake processors. And we don’t need a MacBook for this. So if you have a Windows Laptop powered by 7th Generation Kaby Lake chip, proceed with this tutorial. In my previous articles, I have already discussed how you can install MacOS 10.12.3 on Windows PC without Macbook or MacOS.

Want your home to be as Smart as you and your Smartphone? Learn Home Automation with Google Assistant and Alexa under $10 or ₹700

This is a similar guide but we will be using Windows OS to create the installation disc. This is the quickest and the easiest HowTo guide on MacOS installation that you will find on the Internet. So give it a try and let me know your thoughts in the comments down below. I have even attached a detailed HowTo video guide on Hackintosh in this post. So if you find any problem in installation, you can take help of the video guide. On Techposts, we always try to create a video guide along with the post and you will find almost all posts with a video guide, on Techposts.

Before you Begin…

So let me make it very clear. I or Techposts cannot be held responsible for Any damage, whatsoever, happens to you or your system. So proceed with this guide at your own risk.

Install MacOS Sierra 10.12.6 on Windows Laptop and PC

Now with that said, I have made this guide very easy to understand and I have already edited and created all necessary files and folder to make it more easy for you guys. So all you have to is download, copy and paste. Along with that, I have embedded a video tutorial on MacOS Sierra 10.12.6 installation. So follow the process as shown in this video guide.

Step 1. Backup Drive and Data

So the first thing is you need to backup your system if you are installing on the internal drive. If you have dual storage, don’t touch Windows OS drive, but you must back up the secondary storage as we will be formatting the hard drive for MacOS installation. Which means any data on the drive will be permanently lost. So be careful.

Step 2. Prepare Files and Setup PC/Laptop for MacOS Sierra 10.12.6 Installation

Now let’s go ahead and create MacOS Installation drive. And for that you need at least 8GB USB thumb drive, However, 16GB is recommended.

  • Download the MacOS.dmg which is around 4GB and TransMac app.
  • Once you have downloaded both files, Connect USB Thumb drive to your PC, then run Transmac application as Administrator, and then right click on the USB Thumb Drive and click Format for MacOS.
  • Next, Right click again and this time select Restore from Disc Image. Now browse the MacOS.dmg file you downloaded and select it. Click OK to proceed. Now, this can take a while depending on your system speed.
  • Once it’s finished, you can go to File Explorer and then open the Thumb drive partition. Inside the partition, you will see a few files and folders. Just delete everything. Don’t format drive.
  • Next, download the compressed EFI folder from the link given in the description and then extract the EFI folder to the USB Thumb drive.
  • Now that you have the EFI folder inside the Thumb drive, you can restart your system. Now Enter the BIOS by pressing F2 quickly as the system reboots. Then First, Deactivate Secure Boot.
  • Under virtualization, disable VTD or VT for Direct I/O. That’s it. Now boot your system and press F12 to see Boot options. Select your thumb drive to begin the installation.Disable Secure boot to Install Mac OS on Windows pC powered by Kaby Lake ProcessorDisable VTD in Dell 7560
  • That’s it. Now boot your system and press F12 to see Boot options. Select your thumb drive to begin the installation.
  • On boot, you will see this clover bootloader screen. From here, you need to select the disk that says “Boot Mac OS X from Hackintosh Sierra Zone”.

Step 3. Installing MacOS Sierra 10.12.6

You will see the Apple logo and it will start loading the installation file. Now if you get any error here, I want you to please take a screenshot, upload it to the cloud and share the URL via Facebook Fan page, the link is in the Description. Also, mention system properties only then I will be able to help you fix any error.

If everything is good, you will see the installation window. Proceed to next step by pressing forward arrow button, and agree to all terms and conditions.

  • Next, open Disk Utility. Then choose the drive where you want the Mac OS to be installed. Make sure the volume or disk is empty as this will delete all data from the disk. On top, click Erase, Give a name to the disk, Choose Mac OS 10.12.6, then Extended (Journaled) and GUID Partition from the drop downs. Hit erase, this will format the hard drive and make it ready for Mac OS Installation. So just close the Disk Utility program and select the MacOS 10.12.6 drive.
  • This will begin installing the Mac OS on your System. This may take 20-30 minutes, depending on your system and storage type. SSD will be quicker than the traditional Hard disk drives. Once the installation is finished, you will see a message that says, MacOS could not be installed on your computer.
  • Just ignore this message as MacOS has been successfully installed on your system. This is an error message. So ignore it and click on Restart.
  • Now again press F12 to choose USB thumb drive as a boot drive and then in clover bootloader, choose Boot from MacOS 10.12.6.
  • This will boot the MacOS from the disk where we installed it. This may take a while and Once it boots up. Do the initial setup like Choose Region, Timezone, Agree to terms etc. and choose an Account name and enter a password.
  • That’s it, you have successfully installed the latest MacOS Sierra 10.12.3 on your Kaby Lake laptop or PC. Wait for a While until everything sets up.

Step 4. Setting Up MacOS Sierra and Upgrading to Sierra 10.12.6

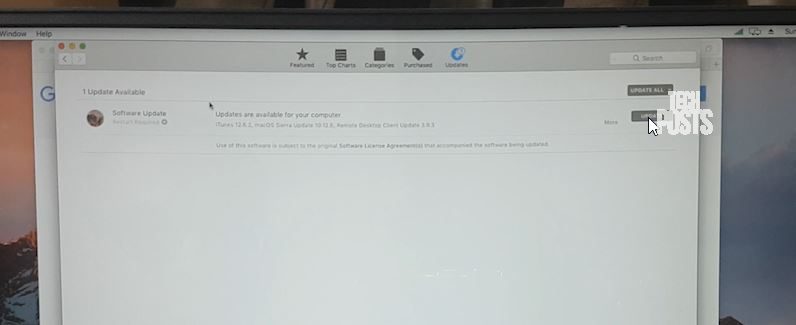

  • Now connect to the internet using the Ethernet port of your PC or Laptop as Wi-Fi will not work. Then go to AppStore. Click on Update icon and the app store will start fetching details of any update available. You don’t need any Apple ID here.
  • It will show you the update, just click on Update and it will download the 10.12.6 Sierra update on the system and once downloaded it will reboot automatically and will start installing the update. You will see this window.Install MacSO 10.12.6 on ANy Windows PC or Laptop
  • Now the system will reboot itself and again you have to press F12 and select USB drive and then boot Sierra 10.12.6 Disk.

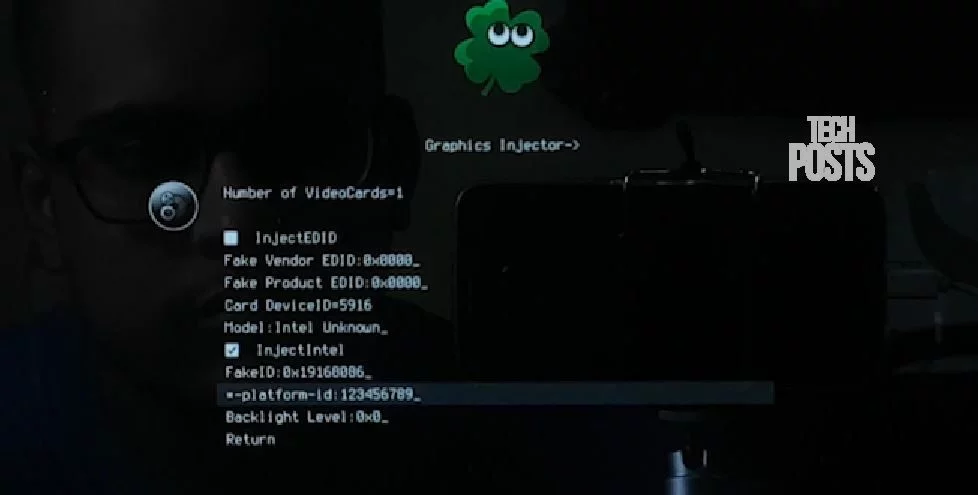

  • Now there’s a good chance that you get error or kernel panics. So again, upload the Screenshot of error and your system configuration. One simple thing you can do if you get this Graphics buffer error is that restart system. Then go to clover option and then go to Graphics Injector and the in the Ig-platform field, press enters to edit the value.
  • Delete the existing ID and enter 123456789. This is an invalid platform id but it will let system boot completely. After that, use multi beast and install UEFI bootloader to MacOS 10.12.6 Hard drive.Edit IgPalteform

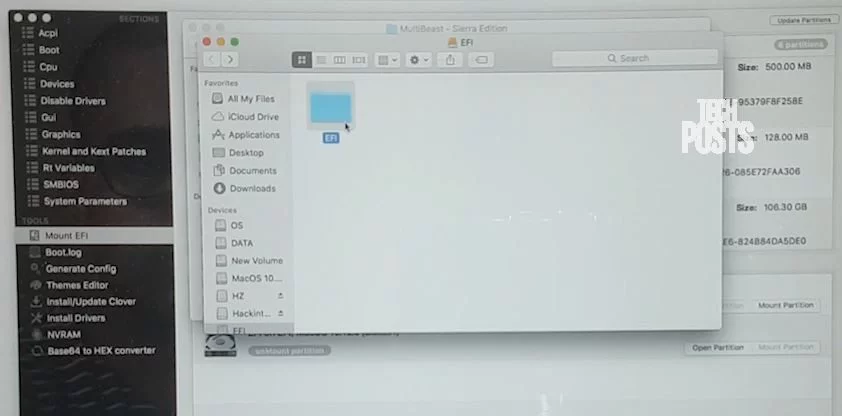

  • After that, use EFI mounter and mount EFI partition.

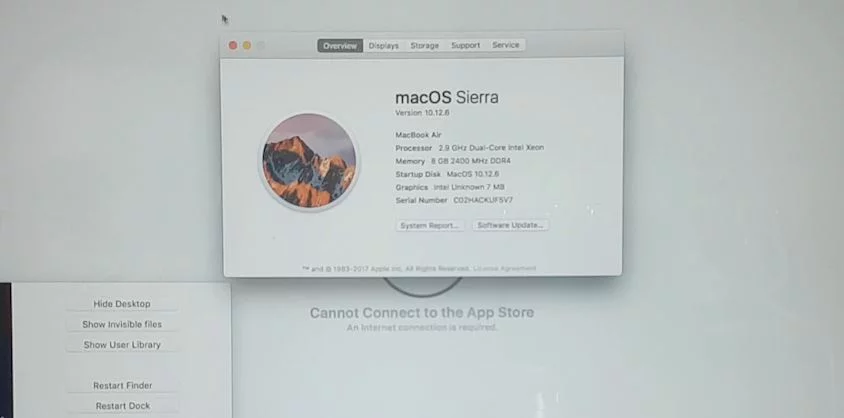

  • Inside EFI partition, delete the EFI folder and paste this new EFI folder. Once you did that. Remove the USB thumb drive as we don’t need it anymore. Just reboot your system, and press F12 and this time you will see the UEFI disk where MACOS installed. Select it and then again select MacOS10.12.6 disk. Your system will boot completely and then you can log in to your system and check system information.Paste EFI FolderInstall MacSO 10.12.6 on ANy Windows PC or Laptop Successful

Video Tutorial for MacOS Sierra 10.12.6 Hackintosh Installation


Now at this point, you have successfully installed MacOS Sierra 10.12.6 on your Windows Laptop or PC powered by 7th Generation Kaby Lake processor. Again, if you get any error share with me, by visiting the Techposts Facebook Fan page. I will answer to each and everyone. But if everything works fine, you can wait for the next guide where I will show you how to make IntelHD graphics work. So Stay tuned, subscribe to our channel, Hit the bell icon for new video updates. Like this video, share this video and comment your problems, queries, thoughts, and suggestions in the comments section down below.


artin June 3, 2018 - 7:15 pm

can i install mac with this method on asus zenbookpro ux 501 vw ?skylake?

Ravi Singh June 5, 2018 - 7:38 pm

Yes, just get replace the config.plist with the skylake supported one. Visit Rehabman’s Laptop plist repository
